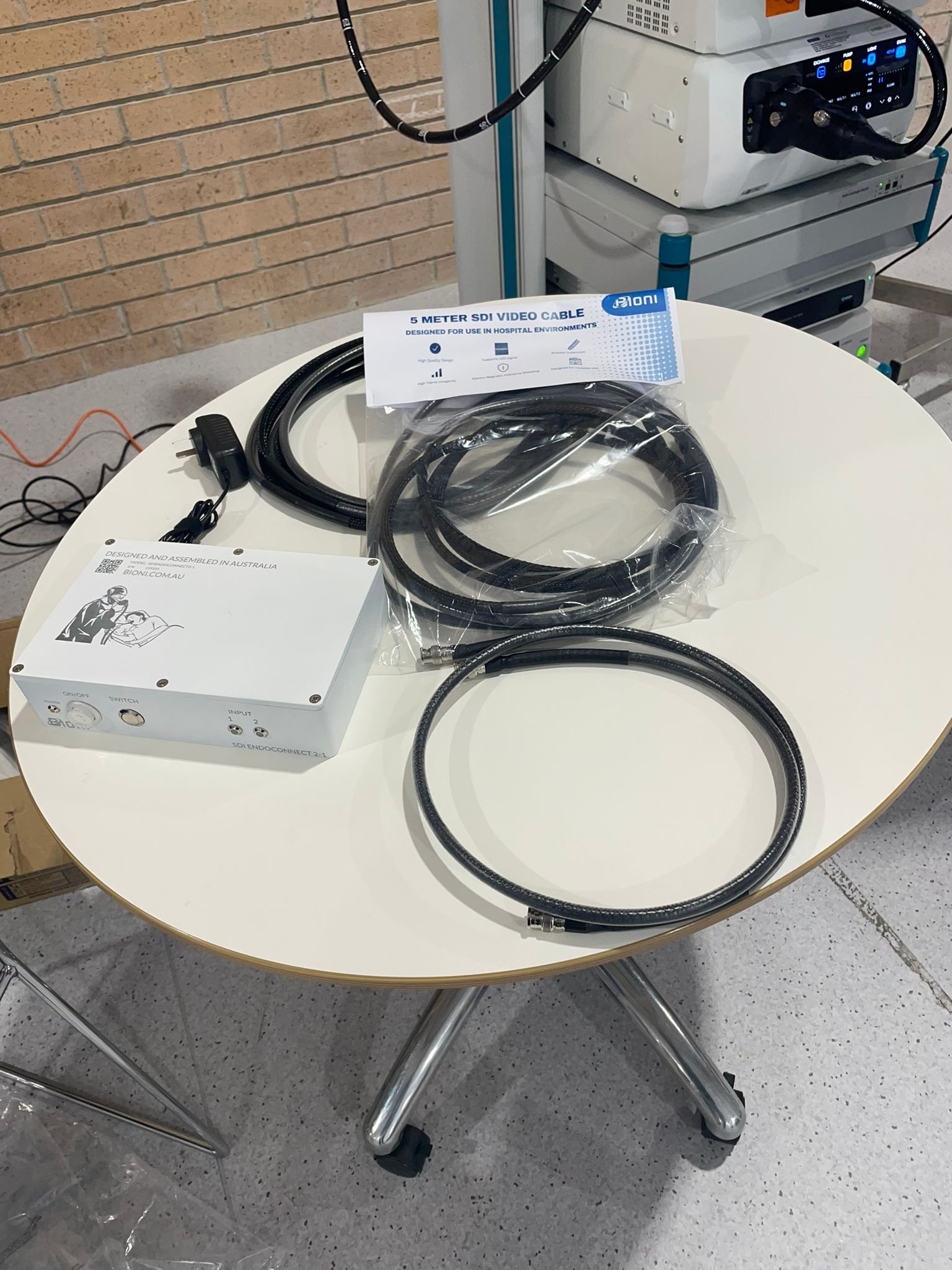

Endoconnect Cable Pack (6 cables)

Description

The Bioni SDI EndoConnect Cable Pack provides everything needed to fully integrate the SDI EndoConnect 2-1 with two endoscopy processors and a reporting workstation. Each cable is selected to meet the signal integrity, length, and connector requirements of clinical video and trigger workflows, ensuring reliable performance up to 12G-SDI (4K UHD at 60Hz).

Sold separately from the EndoConnect unit to give facilities the flexibility to match cable lengths and configurations to their existing endoscopy stack, theatre layout, and reporting setup.

What’s in the Pack

• 4 × 75Ω SDI 12 Ghz video cables (3 meters, BNC-to-BNC) — Connect Processor 1 and Processor 2 to the EndoConnect’s video inputs, and the EndoConnect’s video output to your SDI-to-USB capture device or monitors. Rated for 12G-SDI to support 4K UHD signal transmission without loss or jitter.
• 2 × Trigger cables (3 meter, BNC-to-processor specific) — Connect the remote/trigger ports of each endoscopy processor to the EndoConnect’s trigger inputs.
• 1 × BNC-to-DB9 trigger output cable (3 meter)— Connects the EndoConnect’s trigger output to the serial input on the reporting workstation for seamless integration with reporting software.

Key Features

• 12G-SDI rated cables — Full bandwidth support for SD, HD, 3G, 6G, and 12G-SDI signals up to 11.88 Gbps. Compliant with SMPTE 259, 292, 424, ST 2081, and ST 2082.
• 75Ω impedance-matched — Engineered specifically for SDI signal integrity, minimising reflections and signal loss across cable runs.
• Medical-environment ready — Durable, flexible jackets suited to repeated handling, repositioning, and cleaning in clinical settings.
• Plug-and-play compatibility — Designed to work out-of-the-box with the Bioni SDI EndoConnect 2-1 and standard endoscopy processor BNC outputs.
• Australian support — Backed by Bioni Medical’s local technical team for sizing, compatibility, and replacement queries.

Recommended Use

This cable pack is designed for use with the Bioni SDI EndoConnect 2-1 (BSDITRI2-1). Cables can also be purchased individually if you need to replace a single cable or extend an existing setup.
